DynaFlex II SCR
DynaFlex II SCR products deliver tap, dip, swipe, and scan acceptance in a small form factor.
FEATURED PRODUCT
Certified by the AUS Payments Network until 2031

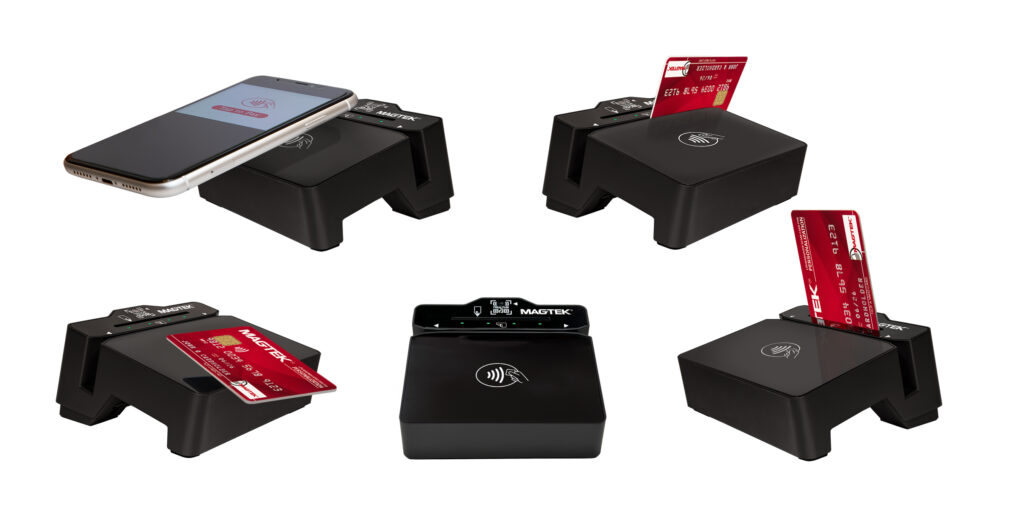

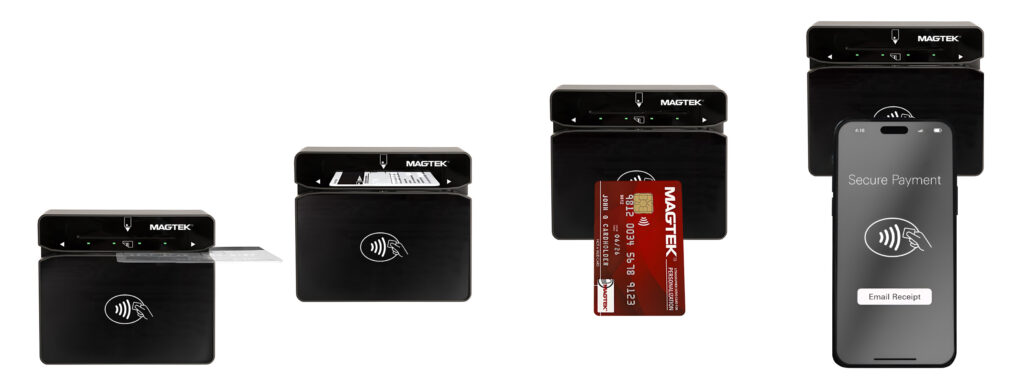

Three in One and Then Some. Tap, Dip, Swipe, and Scan
DynaFlex II SCR is ready to make your lines move faster and your customers happier. A secure cryptographic device, DynaFlex II SCR delivers magstripe, barcode, EMV® Contact Chip, EMV Contactless, and NFC Contactless acceptance.

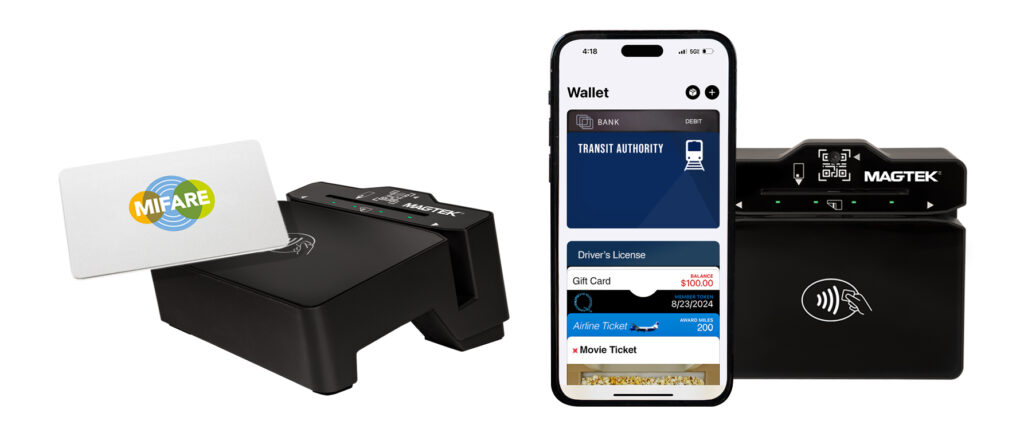

More than Just Payments
Same firmware, same device, ready for non-payment NFC data for access control, authentication, and loyalty with MIFARE®, MIFARE® DESFire®, and NTAG® technology. Planes, trains, and venues benefit from contactless acceptance. Additionally, DynaFlex II SCR is enabled to use Apple VAS and Google SmartTap protocols.

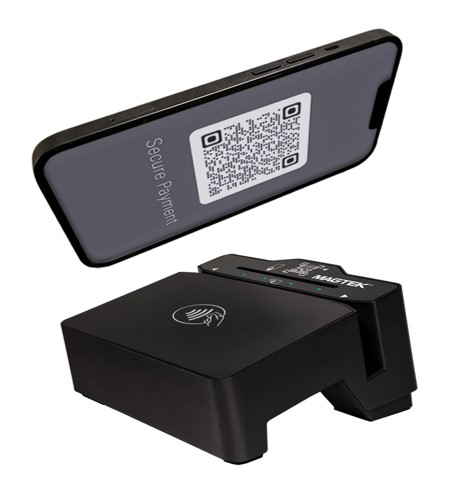

Add Barcode Reading
Enable customers to do more with their phones. DynaFlex II SCR products designated as BCR, read QR Codes and other 1D/2D barcodes. This is ideal when you need to accept more than just payment data including promotions, loyalty and rewards programs, and subscriptions. Ready to read color encoded, logo-based, Linear Barcodes, UPC-A, UPC-E, Aztec, PDF417/ Data Matrix, and more.

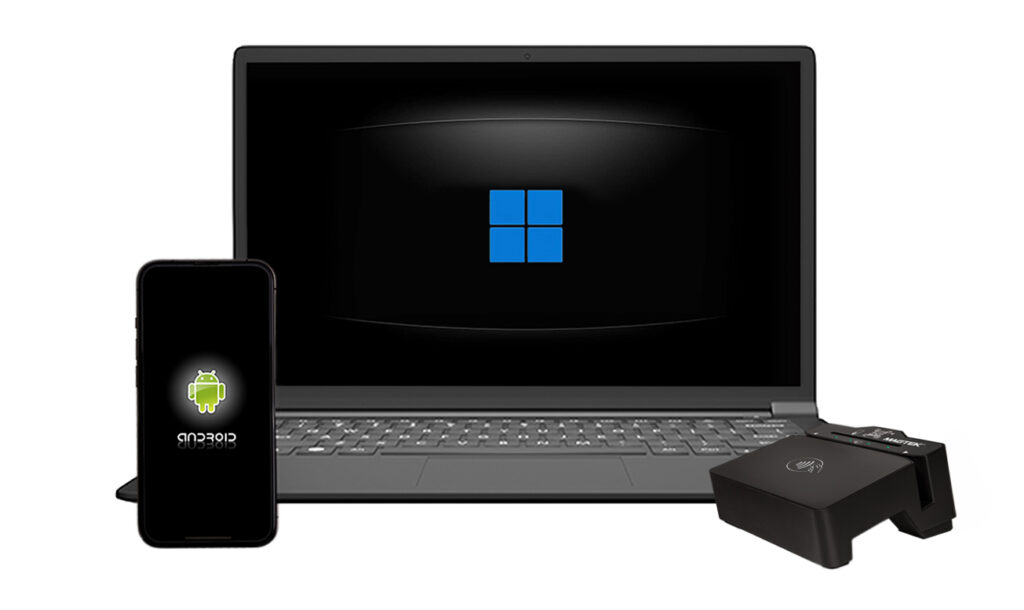

Compatible with Leading Operating Systems
DynaFlex II SCR products are compatible with Android and Windows handheld and countertop products for easier integration into leading payment and banking applications.
Upfront Payments, Stable Form Factor, and Easy Connection

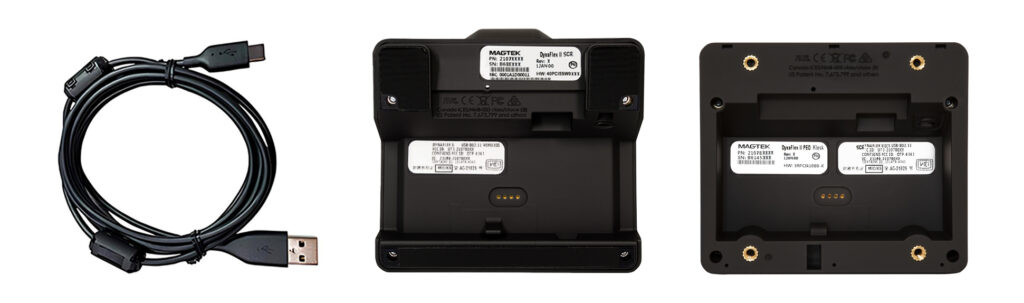

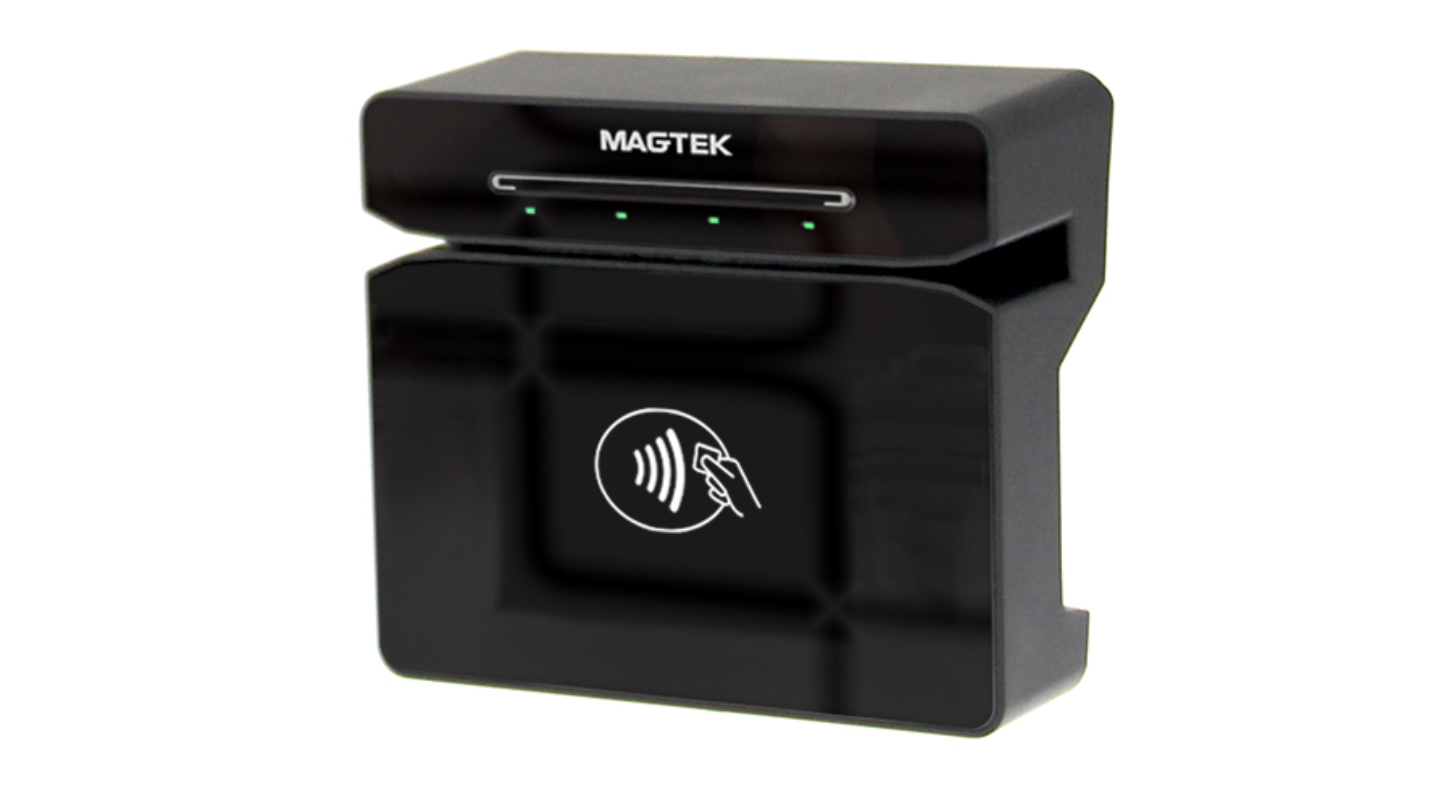

Ergonomically engineered, all payment methods are designed on the front face of the reader. DynaFlex II SCR countertop products come with micro suction fitted feet, assuring the cardholder a stable swipe, tap, dip, keyed, or scanned experience. DynaFlex II SCR Kiosk products come with a flat mount with 4 threaded mounting holes for easier installation into kiosk and unattended solutions.
Functional Form Factor and Simplified Cable Management
DynaFlex II SCR products connect via USB, using one of the most common connection and power sources available. Route the cable in the desired direction – up, down, left, right, or into the mounting compartment of a kiosk. Cable management made easy.

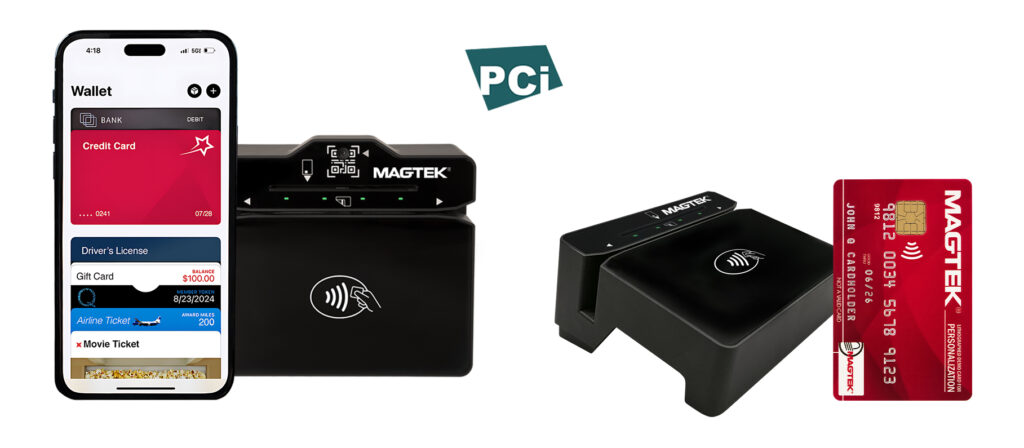

Security is Paramount – PCI PTS 6.x PED, SRED
DynaFlex II SCR products meet and exceed PCI security requirements and include the MagTek MagneSafe® Security Architecture (MSA). The enclosure and associated electronics form a tamper resistant security module (TRSM) where attempts to penetrate or modify the unit cause all keys to be cleared and/or stop the unit from functioning.

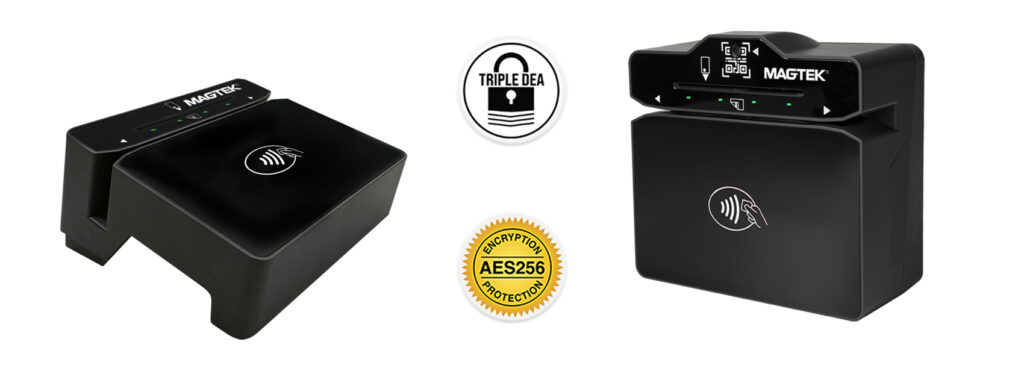

TDEA and AES Encryption Security
DynaFlex II SCR products deliver industry best practices for data protection, supporting AES-256 encryption with CMAC Authentication and triple DEA encryption both with derived unique key per transaction (DUKPT) key management. Scanned, tapped, dipped, and swiped data are encrypted as soon as they are entered into the device.
MAGENSA WEB SERVICES | Payment Facilitation and Gateway
DynaFlex II SCR products are Magensa Gateway L3 certified. Magensa Web Services provide a faster development cycle and save you money. Magensa Gateway and Tokenization Services provide more payment acceptance, more access controls, and an omni-commerce platform.
Remote Management and MagCare Extended Warranty Programs
MagTek stands behind its products and offers USA located support. Magensa remote services provide device management, firmware updates, key injection, and device configuration in centralized or distributed locations. Whether you need to update a single device or send firmware down to thousands of installed devices, our goal is to keep you up and running. And the Magensa MagCare program extends the warranty of your devices, for improved up-time.
Ready for Retail Environments
DynaFlex II SCR products deliver more to retail environments: with operating system and payment versatility, mounting flexibility, reduced PCI scope, enhanced customer experience, and faster transactions. Ready for retail merchants, restaurants, healthcare, hospitality, and anywhere you need to accept payments.
Banking Environments Benefit from More Heads-Up Time
Enable teller line, back office, and other in-branch settings, such as concierge-receptionists, to facilitate cardholder identification and other PIN entry transactions with the security, flexibility, and reliability in-branch visitors expect.
| Payment Methods | |
|---|---|
| Magnetic Stripe Reader | Three-track, bidirectional, ISO 7810, ISO 7811, AAMVA, ISO Type B, 6 to 60 ips |
| EMV Contact Chip Reader | ISO/IEC 7816-1,2,3,4, EMV L1 and L2 Contact Reader |
| EMV Contactless Reader | EMV Contactless Level 1 Version 3.0, D-PAS®, PayPass/MCLab, payWave®, ExpressPay® |
| NFC Contactless Reader / Mobile Wallet Acceptance | Supports Apple Pay, Google Pay, Samsung Pay, MIFARE®, NTAG® |
| Barcode Reader (BCR devices only) | Supports 1D and 2D barcode scanning, QR codes, PDF417, Data Matrix, etc. |
| Reliability and Operation | |
| Magnetic Stripe Card Reader Head Life | 1 Million |
| ICC Read Head Life | 500,000 Card Insertions |
| Operating System Compatibility | Windows 10, Android 4.4.2 and above |
| Touchscreen Display (PED Models Only) | See DynaFlex II PED |
| Status Indicators | 4 LED, auditory beep |
| General | |
| Connection Method | USB-C (USB HID 2.0) |
| Magensa Web Services | L3 Certified Gateway, Remote Services, Tokenization, Encryption, Authentication |
| Electrical | |
| Charging | N/A |
| Rechargeable Battery | N/A |
| Current and Power | Powered through USB |
| Security and Certifications | |
| Compliance | FCC, CE, UL |
| PCI, SRED | PCI PTS POI v6.x SCR, SRED |
| Magnesafe® Security Architecture | MagTek V5 with Encryption, Tokenization, Authentication, Dynamic Data |
| Encryption | TDES/AES and DUKPT Key Management |
| Tamper | Responsive |
| Mechanical | |
| Dimensions (W x L x H) | DynaFlex II SCR: 4.0 x 3.5 x 1.9 in (103.3 x 90.0 x 48.3mm) DynaFlex II SCR BCR: 4.07 x 3.6 x 1.91 in (103.3 x 91.5 x 48.5mm) |
| Mount/Stabilizer | Micro suction feet, Lanyard mount point
|
| Environmental | |
| Storage Temperature | 14°F to 140°F (-10°C to 60°C) |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Operating & Storage Humidity (Non-Condensing) | 10% to 80% |
| Ingress Protection | Splash Resistant |
