DynaProx
DynaProx is L3 certified with the Magensa Gateway for faster integration. Equipped with Apple VAS support, ready to accept EMV Contactless and NFC Contactless mobile wallet payments, and available for access control with MIFARE technology. DynaProx delivers payment and non-payment transaction capability.
FEATURED PRODUCT
Certified by the AUS Payments Network until 2031
Ready for Contactless Payment Transactions

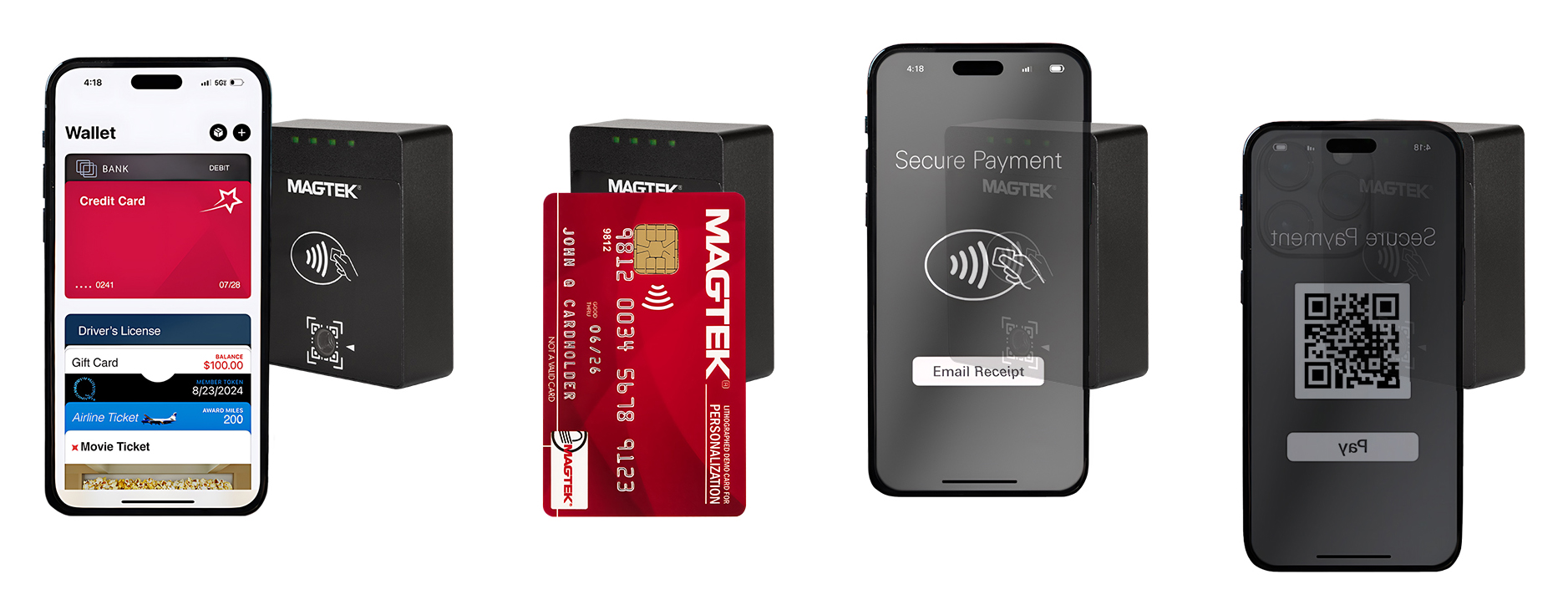

DynaProx delivers the next generation in contactless payment acceptance combining the controller and antenna in a small form-factor design. DynaProx comes standard with contactless EMV and near field communication (NFC) technology and DynaProx BCR adds a barcode camera for reading 1D and 2D barcodes.
More than Just Payments – Mobile Wallet Protocols, Access, Authentication, and Loyalty
Apple® VAS and Google SmartTap open a world of possibilities with event ticketing, loyalty programs, airline tickets, and so much more. MIFARE® Classic, MIFARE® DESFire®, and NTAG open more doors, quite literally, by providing solutions for access control.
Engineered Security – TDEA and AES Encryption
DynaProx is equipped with the next generation of security. The design and architecture meet the requirements for contactless EMV 3.0, PCI PTS POI 6.x, and support triple DEA and AES-256 encryption (with CMAC authentication) and derived unique key per transaction, underscoring our commitment to safeguarding sensitive payment data with the most powerful encryption available.
More than Just Payments
Tap payments are fast, convenient, and meet the needs of new growing markets. Combined with the rise of mobile wallets like Apple Pay, Samsung Pay, and Google Pay, and contactless protocols like Apple VAS and Google SmartTap, there are major opportunities to deliver a reliable and affordable contactless EMV, NFC, and barcode reading device that are used in a variety of deployment scenarios. Ready to read QR Code (color encoded, logo-based), Linear Barcodes, UPC-A, UPC-E, Aztec, PDF417/ Data Matrix, and more.
Better Communication
The transducer for audio cues makes transactions easier for customers and provides auditory feedback to cardholders and operators. The flexible cable management reduces engineering time, and the USB, USB iAP2, or RS-232 interface for communications and power, simplifies development effort.
Built for Kiosks and Countertops – IK08 and IP66 Rated
DynaProx devices are built for unattended kiosks with hard mounting points to match common kiosk and ATM bezel mounts or can accommodate countertops with an optional stand. The physical design meets IK08 for impact resistance, IP66 for water ingress protection, and the housing is made from UV resistant plastic.
Compatibility and Easier Development with Magensa Gateway
Compatible with Windows, Android, and iOS device (over USB iAP2 ONLY) applications. DynaProx products are ready for use with Magensa L3 certified Services, providing Data Protection, Gateway Services, applications, and remote services. Magensa gateway services deliver a PCI-DSS certified environment for securely processing payment transactions. Contactless certifications are available with leading payment processors including FIS (WorldPay), Fiserv (First Data), TSYS, Heartland, NAB (EPX), Elavon, and Chase. Ask about which processors are ready for retail, restaurant, fuel, eCommerce, gift, hospitality, and loyalty card environments and acceptance.
Ruggedized and Ready for a Variety of Applications
Ideal for kiosks, vending machines, unattended retail, and countertop deployment (with the optional stand), contactless payment and barcode scanning are made fast, reliable, and secure. The MIFARE capability, small form factor, and ease of development, make it a great addition to an access control solution coupled with or without payments.
| Payment Methods | |
|---|---|
| Magstripe Secure Card Reader Authenticator | NA |
| EMV Chip Contact | NA |
| EMV Contactless Reader | EMVCo L1 and L2 Contactless Reader EMV Contactless Level 1 Version 3.0 D-PAS®, PayPass™/MCL®, payWave®, Expresspay® |
| NFC Contactless Reader / Mobile Wallet Acceptance | ISO/IEC 18092, ISO/IEC 14443 (Type A/B) Mobile wallets including but not limited to Google Pay, Samsung Pay, Apple Pay, Apple VAS and Google SmartTap Protocols; MIFARE®, MIFARE® DESFire®, NTAG® |
| Barcode Reader (BCR devices only) | BCR models only BARCODE MEDIA: Labels, paper, smartphone/computer displays BARCODE TYPES: QR Codes, Linear Barcodes, UPC-A, UPC-E, Code 128, PDF417/Data Matrix, etc. FIELD OF VIEW: 31.5° total vertical sweep, 42° total horizontal sweep, perpendicular to device face. DEPTH OF FIELD: 1.2 in. (30mm) to 13.8 in. (350mm) LED: Integrated white indicator LED |
| Reliability and Operation | |
| MSR / SCRA swipes | NA |
| EMV insertions | NA |
| Operating System Compatibility | Android, Windows, iOS (over USB iAP2 ONLY) |
| Status and Audio Indicators | Status LEDs and audio |
| General | |
| Connection Method | USB / RS-232 / USB iAP2 |
| Magensa Web Services | L3 Certified Gateway, Remote Services, Tokenization, Encryption, Authentication |
| Electrical | |
| Charging | Rechargeable USB 2.0 charge Charging Time: 4.2 Hr |
| Current and Power | USB Power Powered separately for RS-232 |
| Security and Certifications | |
| Compliance | FCC, CE, UL, UKCA, ROHS32, REACH, MC, TQM, EMV 3.0 |
| PCI, SRED | PCI PTS POI v6.x SRED |
| MagneSafe Security Architecture | MagTek V5 with Encryption, Tokenization, Authentication, Dynamic Data |
| Tamper | Evident/Resistant/Responsive |
| Encryption | TDEA/DUKPT |
| Mechanical | |
| Dimensions | 2.09 in. x 2.52 in. x .72 in. (53mm x 64mm x 18.5mm) |
| Weight | Dynaprox = 2.0 oz. (58g) Dynaprox BCR = 2.0 oz. (58g) |
| Mount/Stabilizer | Hard mounting point to match common ATM Bezel mounts (1.4 x 1.25 inch hole pattern) Optional countertop stand |
| Environmental | |
| Temp - Operating | -30°C to +85°C (-22°F to 185°F) (DynaProx) -20°C to +55°C (-4°F to 131°F) (DynaProx BCR) |
| Temp - Storage | -30°C to +85°C (-22°F to 185°F) (DynaProx) -30°C to +70°C (-22°F to 158°F) (DynaProx BCR) |
| Humidity (non-condensing) | 5 - 90% RH |
| Ingress Protection Compliance | IP66 |
| Shock Resistance Compliance | IK08 |
